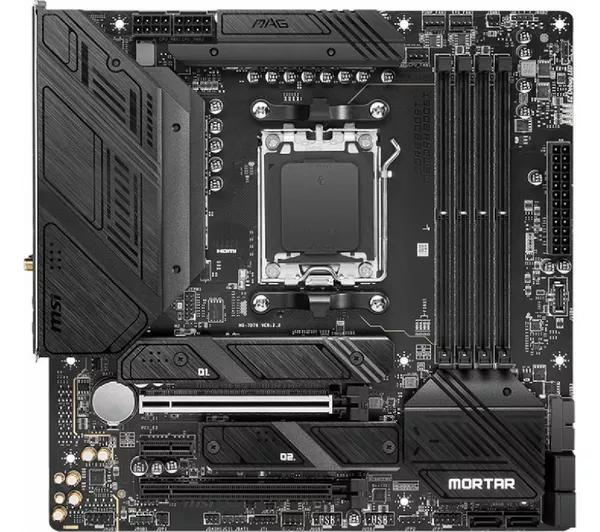

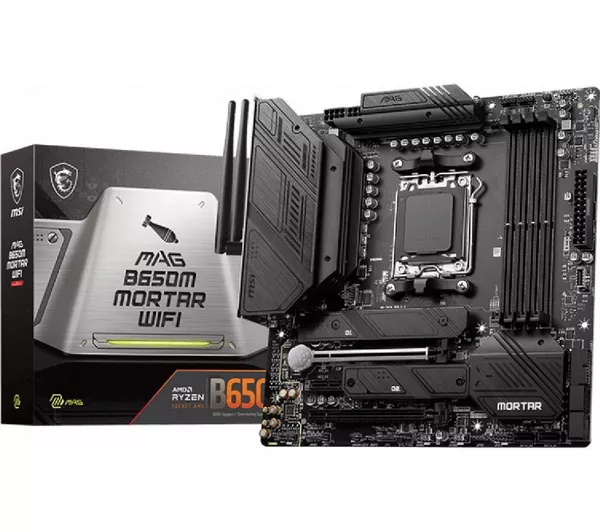

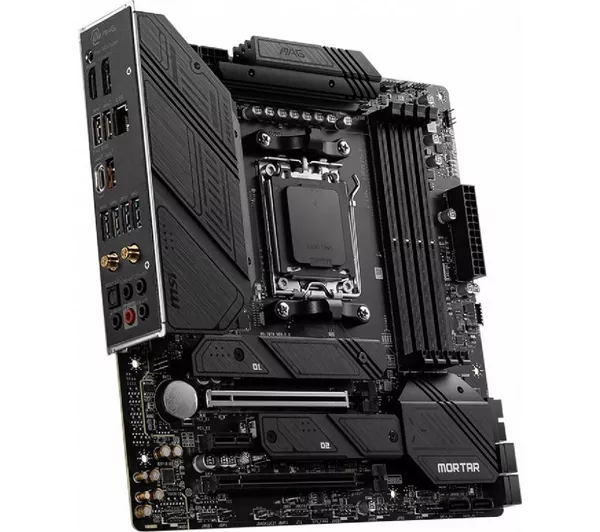

MSI MAG B650M MORTAR WIFI AM5 Motherboard

MSI MAG B650M MORTAR WIFI AM5 Motherboard
MSI MAG B650M MORTAR WIFI AM5 Motherboard - Image 2
MSI MAG B650M MORTAR WIFI AM5 Motherboard - Image 3

MSI MAG B650M MORTAR WIFI AM5 Motherboard

£179.99

This MSI motherboard lets you build a powerful PC based on a 7000 series AMD Ryzen processor and DDR5 RAM. Fancy a gaming rig or a content creator’s workstation? Using the PCIe 4.0 expansion slot you can hook up most graphics cards for a truly high-end setup. Best thing about a PC is upgradeability. That’s why this mother board is seriously tough – the MSI Steel Armor reinforcement means you’re up for many years of heavy use.

– There’s an AMD WiFi 6E chip built-in, so you can expect fast and reliable wireless connectivity
– 2.5G Ethernet port is great for lightning fast wired internet connection
– This motherboard has some serious IO connectivity – there are 9 USB-A ports and a USB Type-C port on the back
– With the extended heatsink and M.2 Thermal Frozr Shield it’s ready to keep cool even a high-performance setup
– Fits up to 2 gen 4.0 M.2 SSDs, each speeding up to 64 GB/s of data transfer
– Choose water or fan cooling, this motherboard has connectors for either

Category: Tags: ,

Description

OVERVIEW

Form factor – microATX
Chipset – AMD B650
Socket – AMD AM5
Processor models supported – AMD Ryzen 7000 Series desktop processors
Memory slots – 4 x DIMM (Max RAM: 128 GB)
Memory standard – DDR5
Cooling features
– Fan cooling
– Liquid cooling
– Extended PWM heatsink
– VRM heatsink
– MOSFET thermal pads
– M.2 Shield Frozr
Operating systems supported
– Windows 10
– Windows 11

EXTERNAL CONNECTIVITY

Video output
– HDMI x 1
– DisplayPort x 1
LAN
– AMD WiFi 6E
– Bluetooth 5.2
– 2.5G Ethernet port x 1
Audio – 3.5 mm jacks x 5
USB
– USB 3.2 Gen 2 x 3
– USB 3.2 Gen 1 x 6
Expansion slots
– PCIe 4.0 (x16 slot) x 2
– PCIe 3.0 (x1 slot) x 1
Storage slots
– SATA x 4 (6 GB/s)
– M.2 Gen4 x 2 (64 GB/s)
Cooling
– CPU fan 4-pin x 1
– CPU pump fan 4-pin x 1
– System fan 4-pin x 3
Buttons – Flash BIOS,
Power
– Power Connector (ATX_PWR) x 1
– Power Connector (CPU_PWR) x 2
Other internal connections
TBT connector x 1
Tuning controller connector x 1
Addressable V2 RGB LED connector x 2
RGB LED connector x 2
TPM pin header x 1
USB
– USB Type-C x 1
– USB 3.2 x 2
– USB 2.0 x 4

GENERAL

Box contents
– MSI MAG B650M MORTAR WIFI AM5 Motherboard
– SATA cable x 2
– EZ M.2 clip
– Cable stickers
– WiFi antena
– User guide
Weight – 1.61 kg
Manufacturer’s guarantee – 3 years
Dimensions  – 243.84 x 243.84 mm (H x W)
Colour – Black
