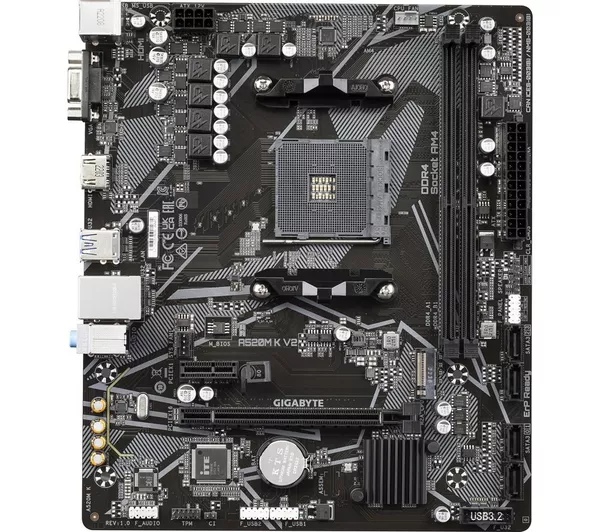

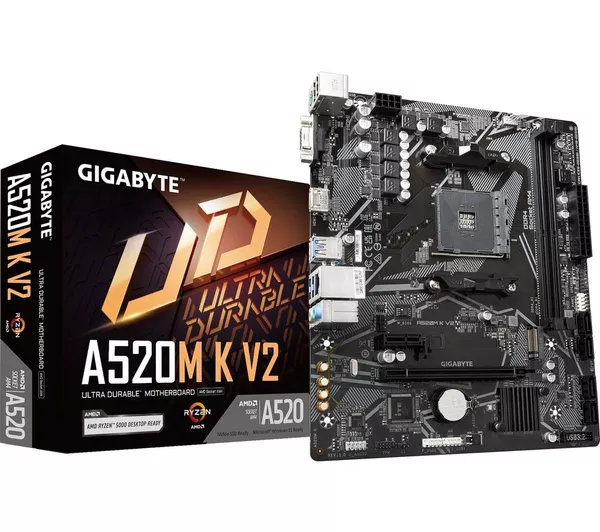

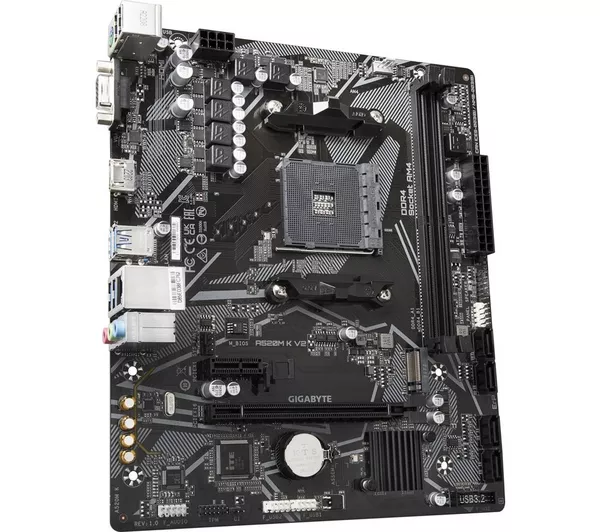

GIGABYTE A520M K V2 AM4 Motherboard

GIGABYTE A520M K V2 AM4 Motherboard
GIGABYTE A520M K V2 AM4 Motherboard - Image 2
GIGABYTE A520M K V2 AM4 Motherboard - Image 3

GIGABYTE A520M K V2 AM4 Motherboard

£64.99

Building a compact desktop PC? Give your new build a solid foundation with this microATX board from Gigabyte. It’s compatible with AMD 3000, 4000 and 5000 Series processors, so you’ve got plenty of options. And there are 2 DIMM slots letting you to plug in up to 64 GB DDR4 RAM – plenty for heavy multitasking or serious gaming.

– You can forget about slow loading – the PCIe 4.0 M.2 SSD slot lets you install a super fast drive
– Laggy internet is a thing of the past when you’ve got a Gigabit Ethernet port for extra stable connections
– Smart Fan 5 makes it easy for you to push the performance while keeping everything cool and quiet

Category: Tags: ,

Description

OVERVIEW

Form factor – microATX
Chipset – AMD A520
Socket – AMD AM4
Processor models supported – AMD Ryzen 3000, 4000, & 5000 Series desktop processors
Memory slots  – 2 x DIMM (Max RAM: 64 GB)
Memory standard – DDR4
Multi-GPU support – No
Operating systems supported – Windows 10 or later

EXTERNAL CONNECTIVITY

Video output
– HDMI 2.1 x 1
– D-Sub x 1
LAN – Realtek Gigabit Ethernet x 1
Audio – Audio jacks x 3
USB
– USB 3.2 Gen 1 x 4
– USB 2.0 x 2
Other external connections – PS/2 port x 1

INTERNAL CONNECTIVITY

BIOS
– 128 Mb Flash ROM
– UEFI AMI BIOS
Expansion slots
– PCIe 3.0 (x16) x 1
– PCIe 3.0 (x1) x 1
Storage slots
– SATA x 4 (6 GB/s)
– M.2 x 1 (32 GB/s)
Cooling
– CPU fan header 4-pin x 1
– Case fan headers 4-pin x 1
Case
– Power LED x 1
– HDD LED x 1
Buttons
– Power
– Reset
Power
– 24-pin EATX x 1
– 8-pin ATX 12 V x 1
Sensors
– Voltage sensor x 1
– Temperature sensor x 1
– Fan speed sensor x 1
– Fan fail sensor x 1
Other internal connections
– Clear CMOS header x 1
– Front Panel Audio header x 1
– Front Panel header x 1
– Speaker header x 1
– TPM header x 1
– Chassis intrusion header x 1
USB
– USB 3.2 Gen 1 header x 2
– USB 2.0 header x 4

GENERAL

Box contents
– Gigabyte A520M K V2 AM4 Motherboard
– SATA cable x 1
– I/O shield
– User manual
Weight – 420 g
Manufacturer’s guarantee – 3 years
Dimensions – 40 x 233 x 198 mm (H x W x D)
Colour – Black
