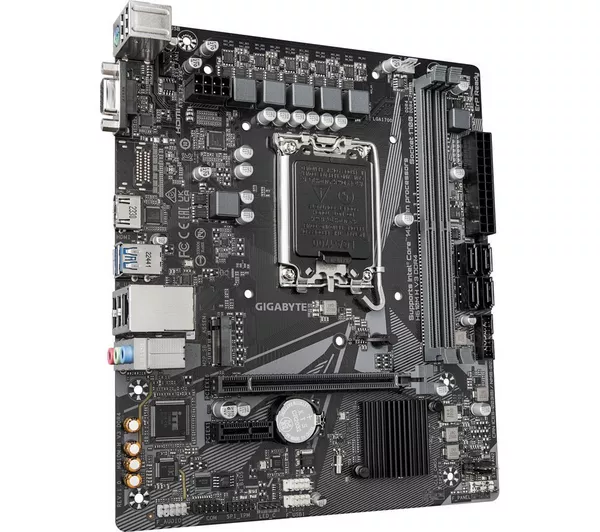

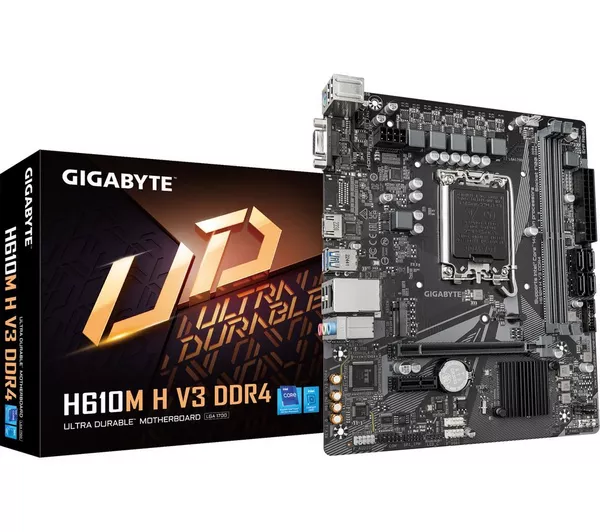

GIGABYTE LGA1700 H V3 DDR4 H610M Motherboard

GIGABYTE LGA1700 H V3 DDR4 H610M Motherboard
GIGABYTE LGA1700 H V3 DDR4 H610M Motherboard - Image 2
GIGABYTE LGA1700 H V3 DDR4 H610M Motherboard - Image 3

GIGABYTE LGA1700 H V3 DDR4 H610M Motherboard

£84.99

If you want to build a proper machine, you need a solid base. This H610M H V3 DDR4 Gigabyte motherboard is ready for 14th Gen Intel® Core™ Processors, and also works great with 13th and 12th gen. So you can use it as the base for a wide variety of systems. You can plug in up to 64 GB of DDR4 RAM and go through your workflows. With the Hybrid Digital VRM Design you can safely overclock the CPU and push it to the max.

– With PCIe 4.0 you can have high-speed storage that won’t make you wait around
– The Smart Fan 6 make sure your motherboard stays cool even with high-end components
– With 2.5 GB Ethernet you’ll have super-fast and rock-solid internet connection

Category: Tags: ,

Description

OVERVIEW

Form factor – Micro ATX
Chipset – Intel® H610
Socket – Intel® LGA1700
Processor models supported – 14th/ 13th, and 12th Generation Intel® Core™
Memory slots – 2 x DIMM (Max RAM: 64 GB)
Memory standard – DDR4
Cooling features
– Hybrid fan headers
– Smart fan 6
– Multiple temperature sensors
Operating systems supported – Windows 10 or later

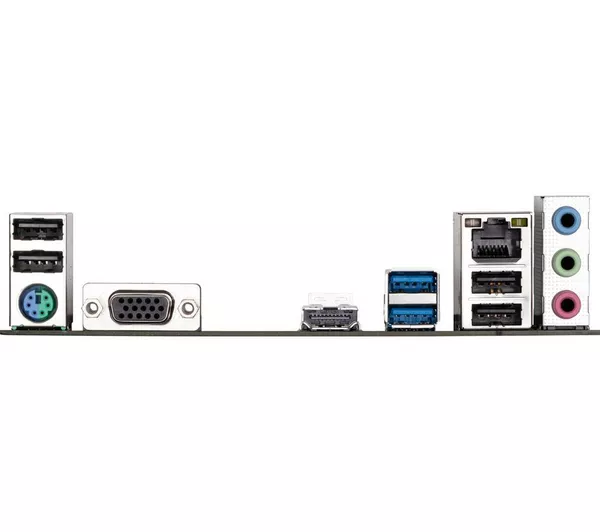

EXTERNAL CONNECTIVITY

Video output- HDMI x 1
LAN – Ethernet port x 1
Audio – 3.5 mm jack x 3
USB
– USB 3.0 x 2
– USB 2.0 x 4

INTERNAL CONNECTIVITY

BIOS – UEFI AMI BIOS
Expansion slots
– PCIe 4.0 (x16) x 1
– PCIe 3.0 (x16) x 1
Storage slots
– SATA x 4 (6 GB/s)
– M.2 x 1
Cooling
– CPU fan header x 1
– System fan headers x 2
Case
– Power LED x 1
– HDD LED x 1
– Power switch x 1
– Reset switch x 1
Power
– 24-pin ATX x 1
– 8-pin ATX x 2
Sensors
– Voltage sensor
– Fan speed sensor
– Temperature sensor
– Water cooling flow rate sensor
– Fan fail warning sensor
– Fan speed control
Other internal connections
– RGB LED strip header x 1
– SPI TPM header x 1
– Serial port header x 1
USB
– USB Type-C x 1
– USB 3.0 x 5
– USB 2.0 x 4

GENERAL

Box contents
– Gigabyte LGA1700 H V3 DDR4 H610M Motherboard
– User manual
Weight – 426 g
Manufacturer’s guarantee – 3 years
Dimensions – 40 x 193 x 223 mm (H x W x D)
Colour – Black
